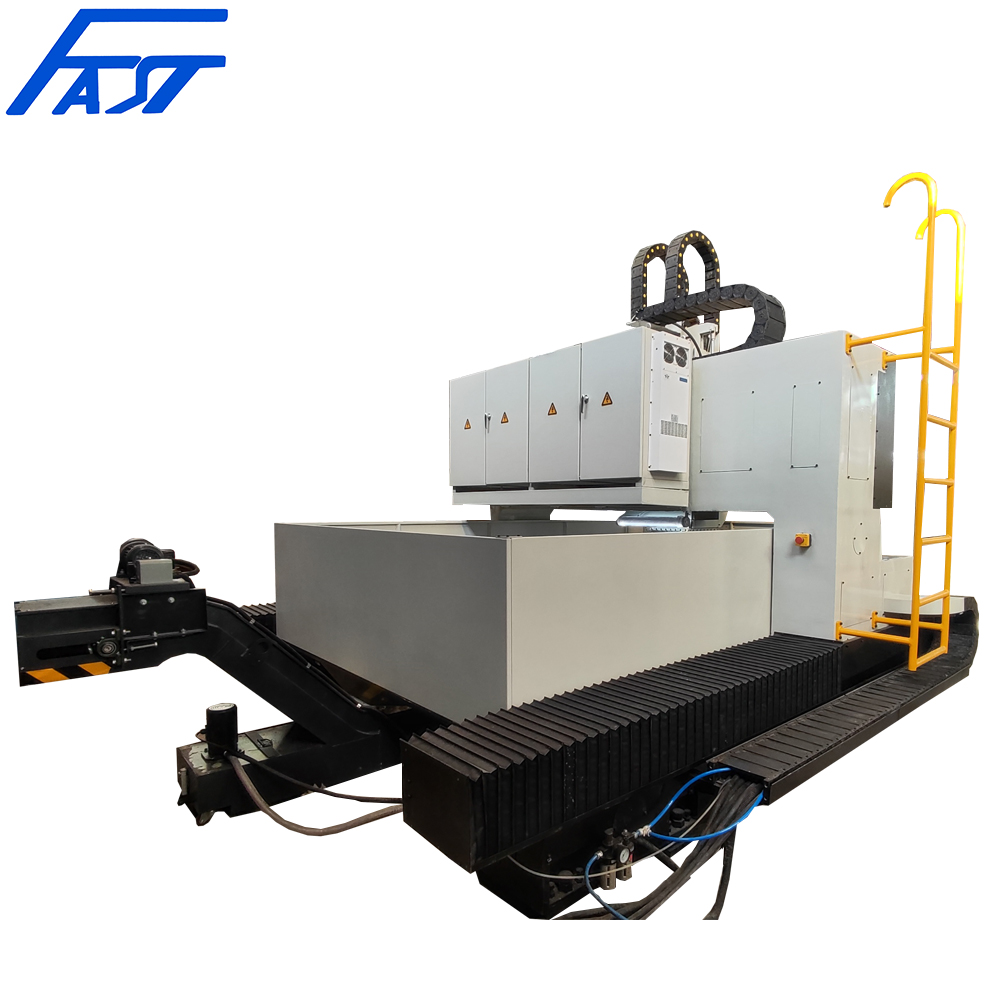

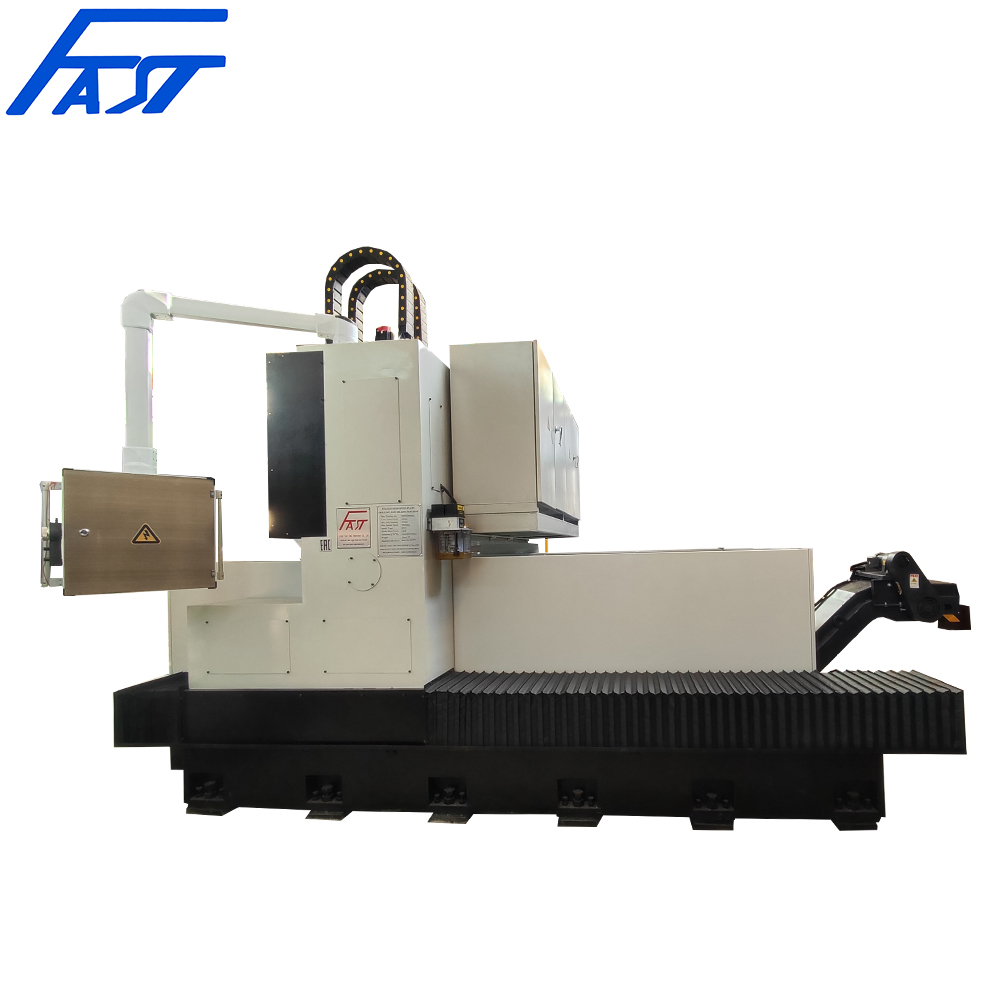

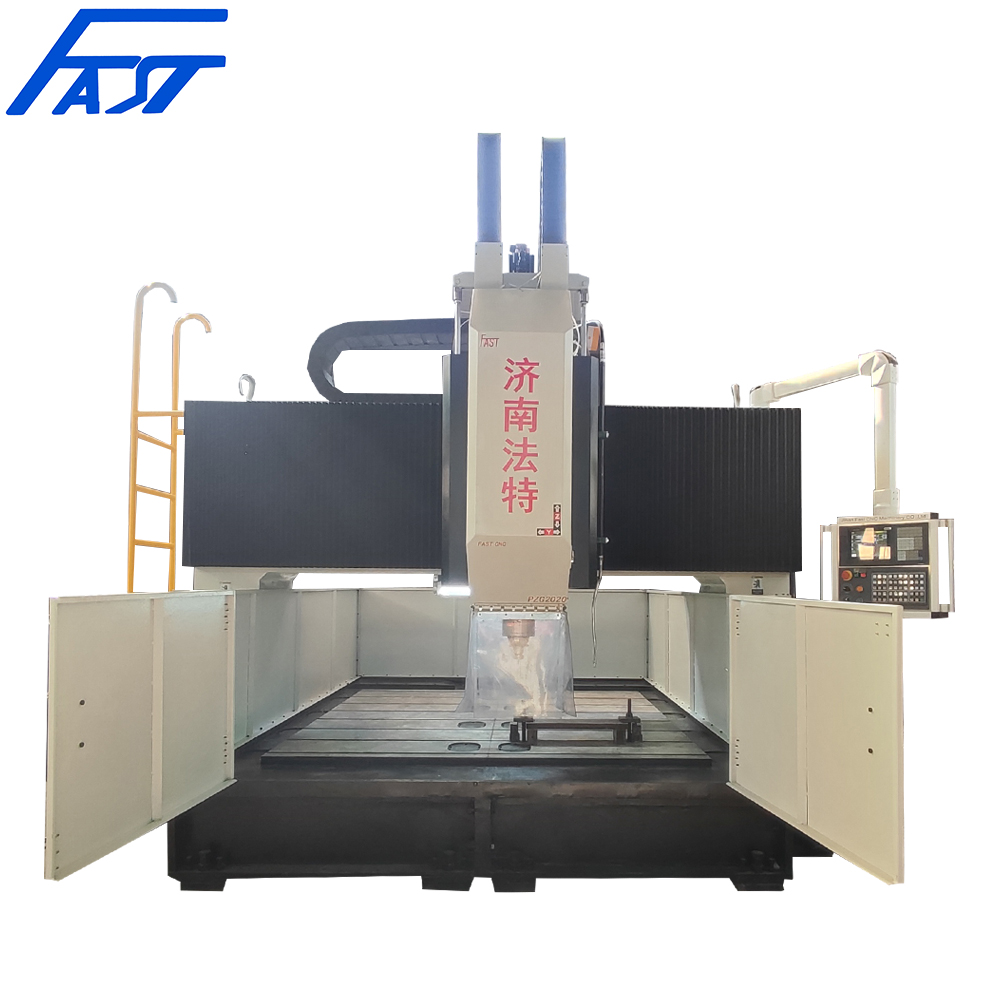

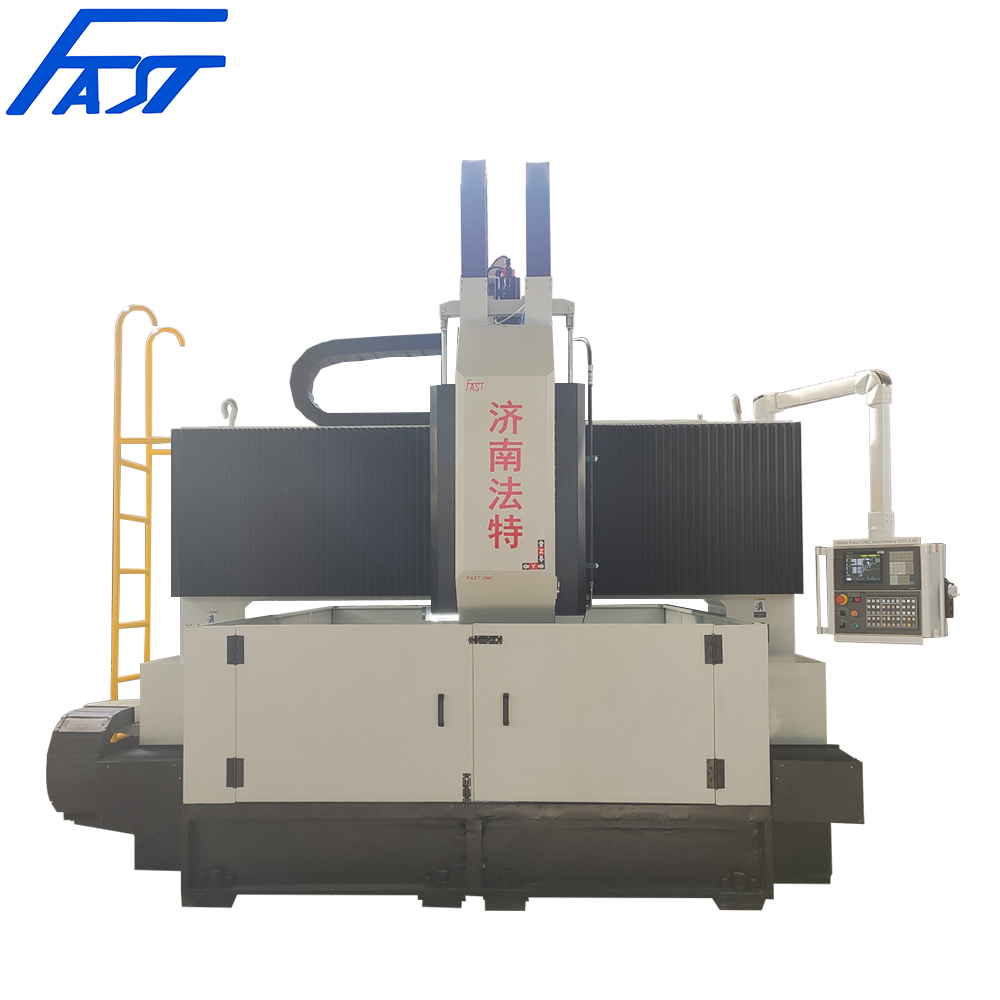

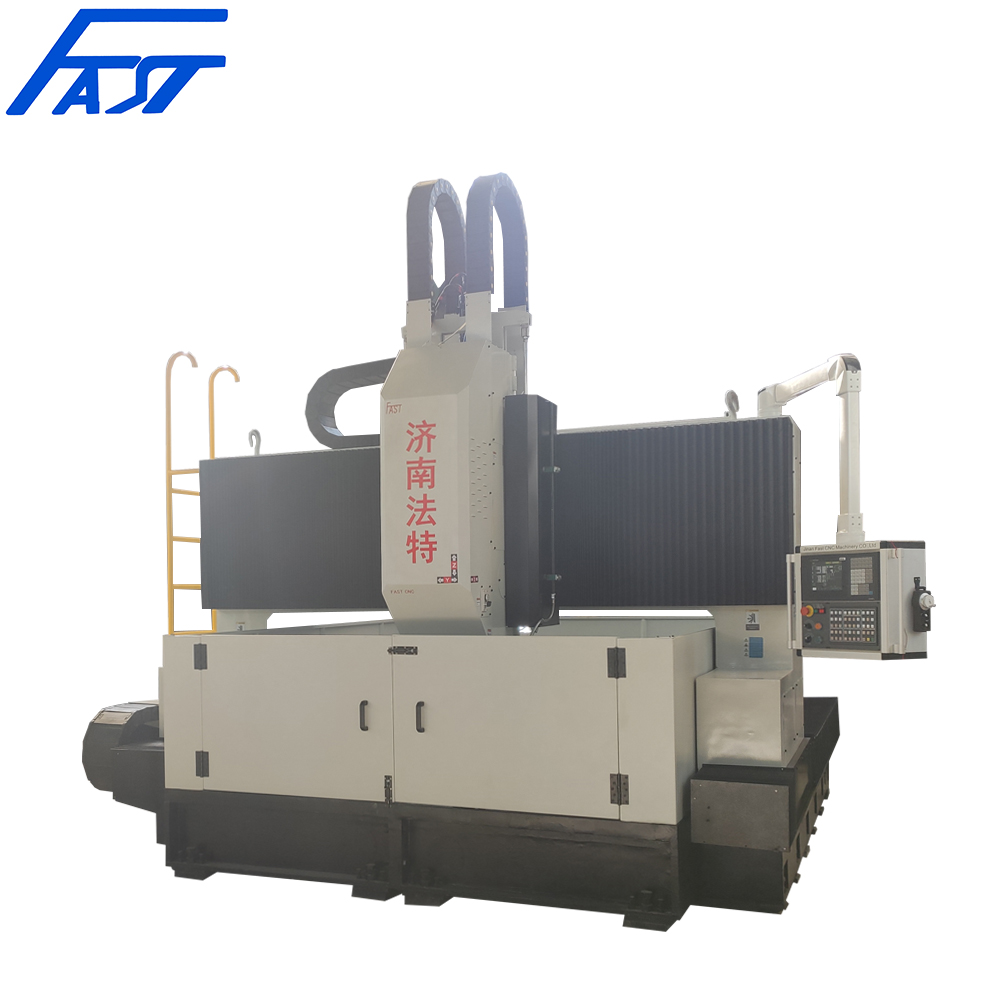

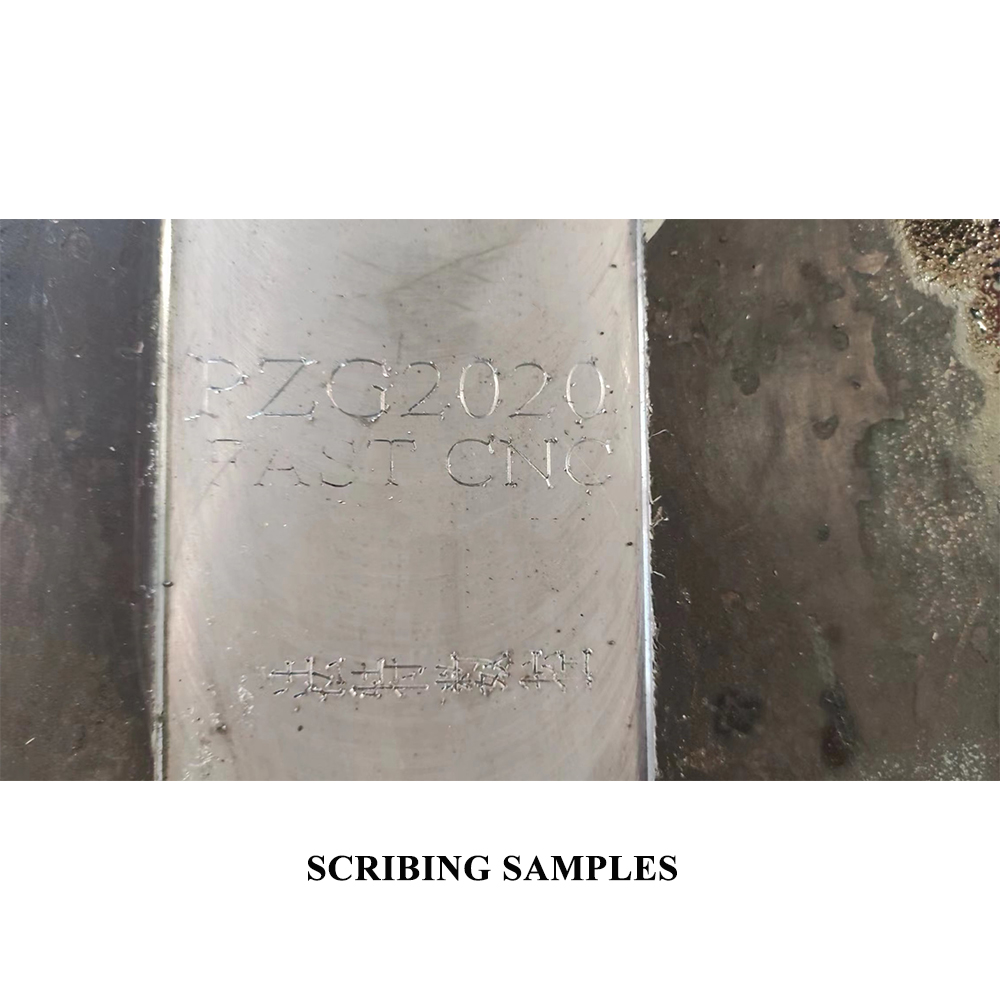

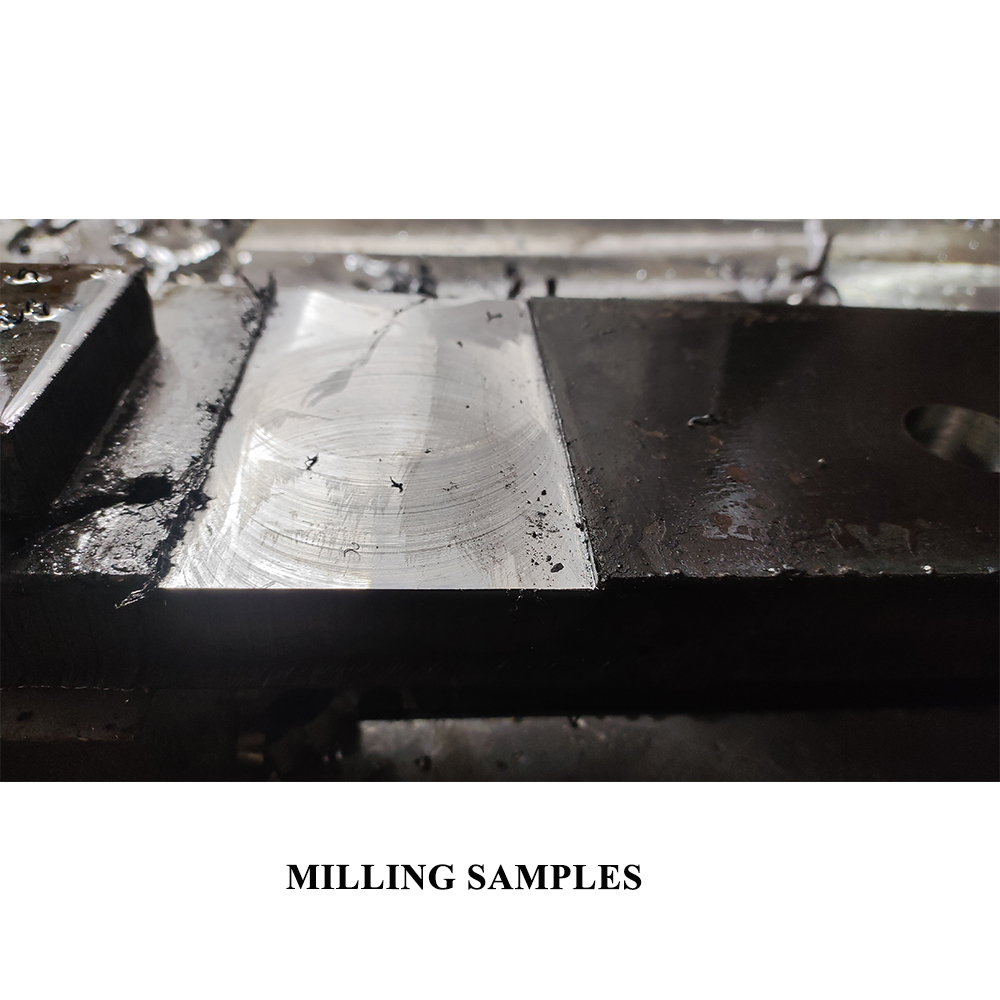

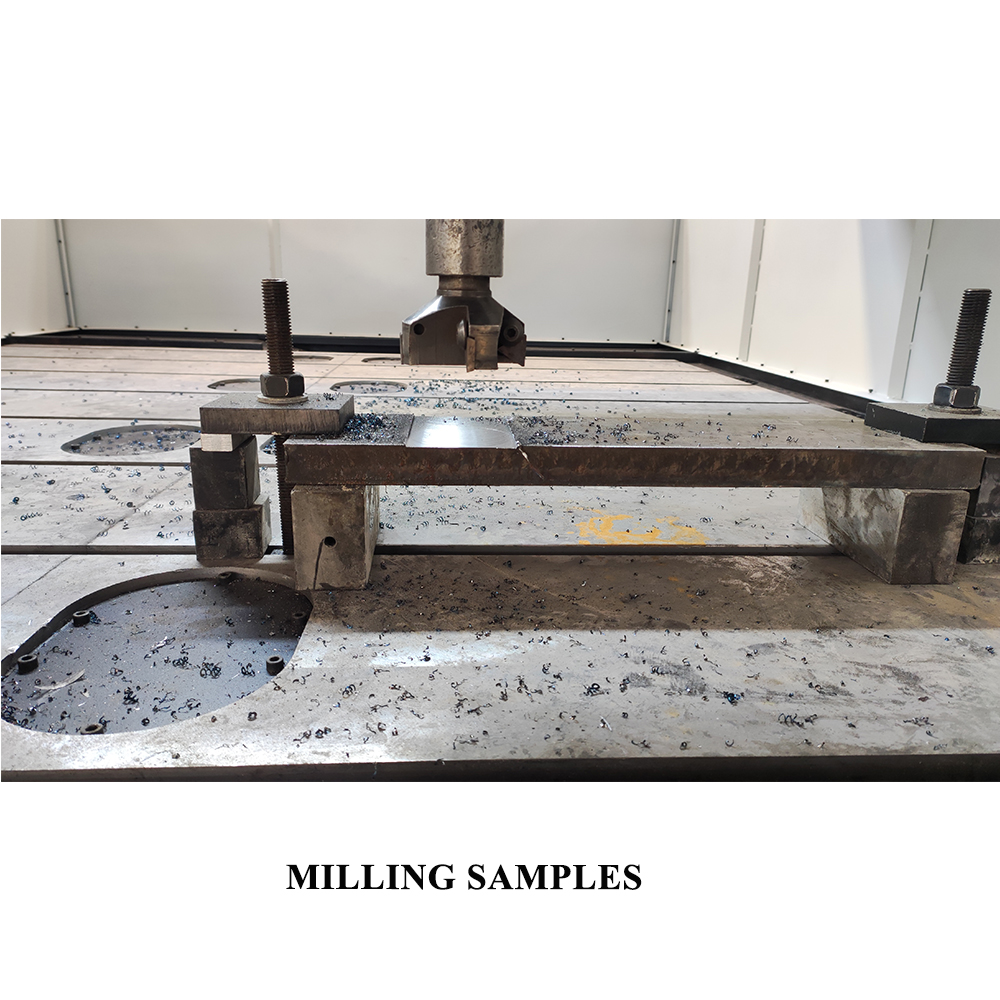

CNC GRANTRY MOVALBE HIGH SPEED DRILLING& MILLING MACHINE PZG2020-50-1
1. APPLICATION
This machine is used for high-efficiency drilling and milling of tubesheets, flanges, rings, section steel and other workpieces. It can achieve Drill through holes, Blind holes and Stepped holes in single material parts as well as in composite materials.
The machining process of this machine is digitally controlled, and the operation is very convenient. It can realize automation, high precision, multi-variety and mass production.
2. TECHNICAL DATA
Name
Specification
Mode
Gantry movable type CNC
Function
Drilling ,Milling
Table size (L*W)
2230*2300mm
Max. workpiece size (L*W)
2000*2000mm
Distance between the bottom of the spindle to work table
230~630mm
Processing Capability
Max. Drilling Depth
150mm
Max. Drilling Diameter
Ф50mm
Drilling Power Head
Type of Power Head
BT50
Servo control power head
Quantity
1
Type of Clamp
Automatic broach, air pressure release
Spindle Technical Data
Spindle Power
22kW
Spindle Rotating Speed
0~3000r/min
Main shaft rated output torque
280Nm
Longitudinal movement X Axis
Max. Stroke
2000mm
Speed of X axis
0~6000mm/min
Servo motor power of X axis
2.3kW (with precision reducer)
Transverse movement of Y Axis
Max Stroke
2000mm
Speed of Y axis
0~6000mm/min
Servo motor power of Y axis
2.3kW (with precision reducer)
Vertical Stroke of Z Axis
Max. Stroke
400mm
Feeding Speed of Z axis
0~4000mm./min
Servo motor power of Z axis
2.3kW(with precision reducer)
CNC Axes
4 Axes
Machine Accuracy
Positioning Accuracy
＜0.05mm
Re-positioning Accuracy
≤0.03mm
Verticality of Spindle to work table
≤0.03mm
(within 300mm)
Run out of the bottom of spindle and the side spindle
≤0.005 mm
Lubrication system pressure
1.0MPa
Cooling system & filter system
Cooling System Max. Pressure,Power, Flow
5.0MPa,5.5kW, 30L/min
Chip remover power
0.75kW
Outline dimension(L*W*H)
3170*3100*2600mm
Total Power
Appx.34kW
Net Weight
Approx. 16T
★ All of these models can be customized according to customer requirements.
